Light Dark Sensor Circuit With Relay

Light Dark Sensor Circuit With Relay. Thus, there are different ways to make dark sensors which we will discuss in this article. The ecg128/nte128 transistor stipulated can be substituted with any npn transistor rated at sufficient gain and current for the chosen relay coil.

Dark Sensor Relay Switch Circuit Using LM741 from circuits-diy.com

A relay is connected in the circuit whose two switch ends are connected to two different leds through resistors. Whenever the intensity of light falling on this circuit sensor is below a certain value a buzzer connected to the output of ic 555 timer will produce sound. Preset vr1 set the sensitivity of the ldr.

Source: www.engineersgarage.com

Preset vr1 set the sensitivity of the ldr. However the problem is that with slight disturbance of light falling on the ldr the relay triggers on and off very quickly and that makes the led blink rapidly.

Source: circuits-diy.com

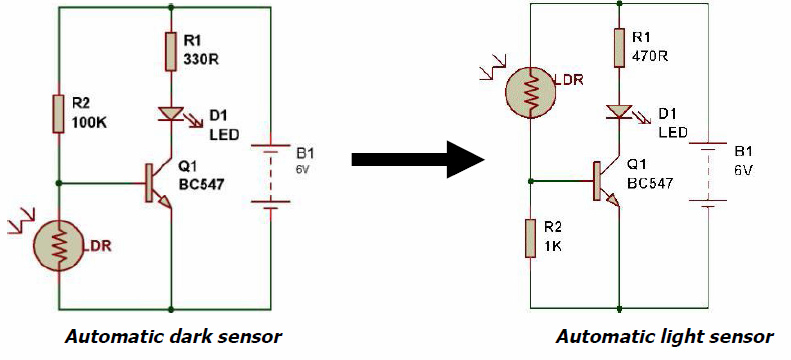

This is the basic dark and light sensor which using photoresistor as sensing component. Trying to develop a dark sensor.

Source: circuits-diy.com

It can easily be mounted because of number of components used in circuit are quite small. A circuit that detects darkness or the absence of light is known as a darkness detector or dark detector.

Source: scopionz.blogspot.com

Light / dark activated relay. This is the basic dark and light sensor which using photoresistor as sensing component.

Source: www.pinterest.com

Thus, there are different ways to make dark sensors which we will discuss in this article. Dark/light activated circuit using ldr the dark sensor circuit is very useful to automatic switch on and off any appliance by detection of light and dark.

Source: electronics.stackexchange.com

This circuit can be operated with pencil cell as it require less only 3v for its operation. We can create different night light sensor dark detector electronics projects by employing the most basic components like ldr, 555 timer ic, etc.

When Light Intensity High On Ldr, The Resistance Through It Decrease And When Light Intensity Is Low.

Have successfully made it but with a major problem. An ldr changes its resistance value depending on the amount of light it receives. Light / dark activated relay.

When Light Intensity High On Ldr, The Resistance Through It Decrease And When Light Intensity Is Low On Ldr, Then The Resistance Through It Will Increase And Go Very High.

Trying to develop a dark sensor. To activate the output (for example a lamp), a relay is used. A tutorial on how to make a light sensor / darkness detector circuit on breadboard using ldr and a transistor.

Ldr Is A Photoresistor That Is Used For The Detection Of Light.

Please ask if you have other questions. This dark activated switch can trigger a relay to operate an ac lamp at sunset. You can get the circuit here:

It Can Easily Be Mounted Because Of Number Of Components Used In Circuit Are Quite Small.

Ldr is used as the light sensor. It is ideal to use as switch less night lamps driver. We will use an ldr (light depended resistor) to measure the light level.

The Resistance Of A Photoresistor Decreases With Increasing Incident Light Intensity, In Other Words, It Exhibits Photoconductivity.

Yes, i do have solution for this problem, if you make 741 based dark sensor, the relay does not shake or flicker/flutter. Dark/light activated circuit using ldr the dark sensor circuit is very useful to automatic switch on and off any appliance by detection of light and dark. Preset vr1 set the sensitivity of the ldr.
